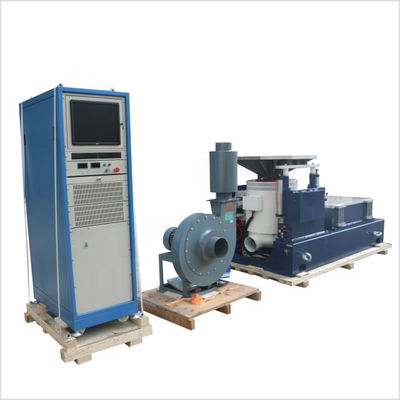

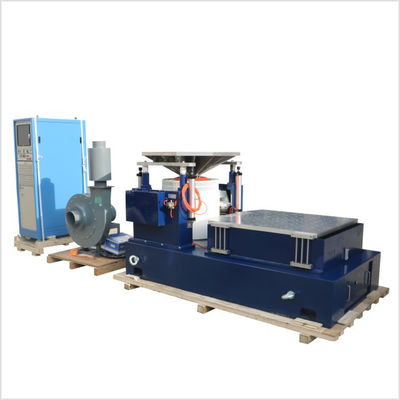

60kN High-Force Output Vibration Test System with Versatile Test Modes and High-Precision Electrodynamic Shaker

60kN Vibration Test System Conducts MIL-STD 810 Vibration and Shock Testing

Our 60kN Vibration Test System is a high-force, high-performance solution specifically engineered for the stringent requirements of military and aerospace qualification, capable of conducting MIL-STD-810-like vibration and shock testing. Delivering a massive 60 kN (6,000 kgf) of force, this system provides the power and precision necessary to subject large, heavy, and mission-critical equipment to the punishing dynamic environments mandated by the U.S. Department of Defense.

Key Features

• High-Force 60 kN Output: The immense force rating ensures the system can rigorously test heavy payloads and large assemblies, accurately replicating the high-G shock and intense vibration profiles required by military standards.

• MIL-STD-810 Compliance Capability: The system is equipped with advanced control software and hardware capable of executing specific procedures detailed in MIL-STD-810H (e.g., Method 514.8 for Vibration and Method 516.8 for Shock).

• Versatile Test Modes: Capable of generating high-precision sine, complex random, and various shock waveforms (half-sine, terminal peak sawtooth, etc.), allowing for comprehensive qualification under a single system.

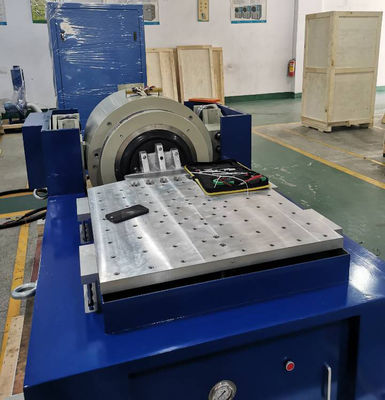

• High-Precision Electrodynamic Shaker: Our shaker utilizes advanced technology to ensure accurate, repeatable, and controlled generation of all dynamic profiles, maintaining waveform fidelity even at high G-levels and high frequencies.

• Comprehensive Data Acquisition: The system continuously monitors and records all critical test parameters (acceleration, displacement, force, etc.), providing detailed, auditable data for analysis, root cause identification, and essential compliance documentation.

• Robust & Durable Construction: Built with industrial-grade components and a reinforced structure designed to withstand the immense forces of repeated high-G shock and continuous high-force random vibration testing.

• Customizable Fixturing: Our engineering team designs and manufactures application-specific fixtures to securely mount complex military equipment, optimizing stress transmission and ensuring test integrity.

Applications

• Aerospace & Defense: Qualification of avionics, missile components, ruggedized electronics, and communication equipment for performance under combat and extreme operational conditions.

• Military Ground Vehicles: Durability testing of electronic systems, displays, and structural components against severe road, track, and off-road vibrations and impact shocks.

• Naval Systems: Shock and vibration testing of shipboard electronics and sensor systems.

• Weapon Systems: Assessing the resilience and reliability of munitions, guidance systems, and other critical hardware during transportation and deployment.

• Ruggedized Equipment: Testing specialized computers, optics, and sensors designed for harsh, dynamic environments.

Benefits

• Guaranteed Compliance Capability: Provides the confidence and data needed to meet stringent military and international qualification standards, streamlining the certification process.

• Unmatched Product Robustness: Rigorously validates product integrity by simulating real-world battlefield conditions, leading to superior product reliability and mission success.

• Versatile Qualification Platform: A single system handles both high-force vibration and extreme shock testing, maximizing efficiency and minimizing equipment investment.

• Superior Data Fidelity: Ensures accurate and repeatable results, essential for rigorous military R&D and failure analysis.

Specifications

Ready to qualify your mission-critical equipment to the highest military standards? Contact our experts today to discuss your requirements for a 60kN Vibration Test System for MIL-STD 810 testing.
